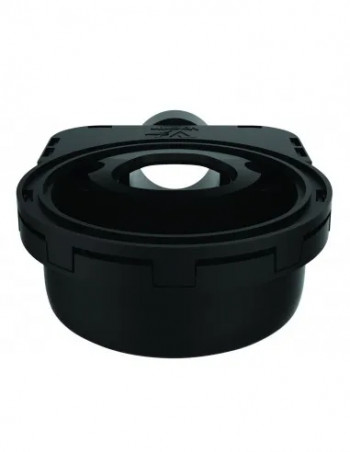

Smart ultra-flat shower drain for shower tray D.90 horizontal outlet, H.48, to be glued déstockage

Ultra-flat Smart shower drain for horizontal outlet D.90, H.48, VALENTIN reference 57680000000.

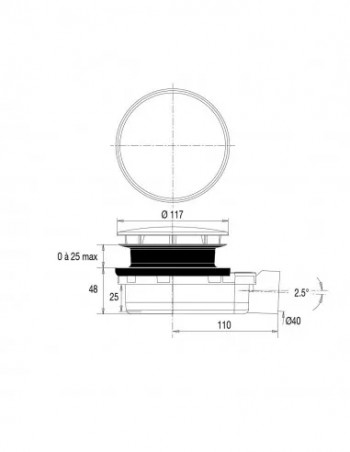

SMART ultra-flat shower drain for shower tray diameter 90 mm, height 48 mm only.
Crimped stainless steel cover diameter 117 mm, horizontal outlet diameter 40 mm, water depth 25 mm.
Double self-fixing joint, integrated 2.5° slope and direct access to the pipe.

Features:

– Crimped stainless steel cover Ø 117 mm.
– Height: 48 mm.
– Horizontal outlet Ø 40 mm to be glued.
– Double Autofix joint.
– Stainless steel clamping plate with Phillips screws.
– Water clearance 25 mm.
– Integrated slope 2.5°.
– Channel access.
– Flow rate: 31 l/min.

Benefits:

– Certified to NF standard.
– Space saving.
– Easy and quick to install.
– Direct access to the pipe: easy cleaning without tools.
– Labelled as a sustainable and ecological solution.
