Jollyfill » float valve with side feed.

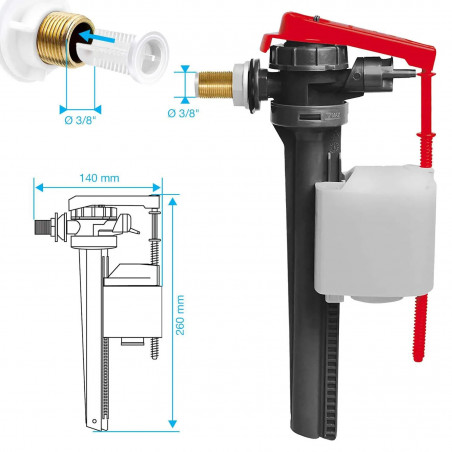

Jollyfill » side-feed float valve with 3/8″ WIRQUIN brass spigot, reference 10723581.

Product type: Float valve.

Description: Jollyfill NF servo-valve float valve.
Delayed fill function saves water.
INGENIOUS: patented 180° rotating head.
COMPACT: ideal for narrow ceramics.
SILENT: very quiet filling (1st acoustic class 13 dBa, i.e. 20 times less than the noise of a normal tap).
ADJUSTMENT: simple, precise water level adjustment by unclipping the screw.
Flow rate at 3 bar: 8.4 L/min.
Low and high pressure operation.
3/8″ brass spigot.
Operating range: 0.1 to 20 bar.
Withstands pressure peaks up to 20 bar.
Water level adjustment: by screw.
Anti-siphoning.
Water hammer protection.
Straightforward closure.

Supplier: WIRQUIN

Supplier reference: 10723581
